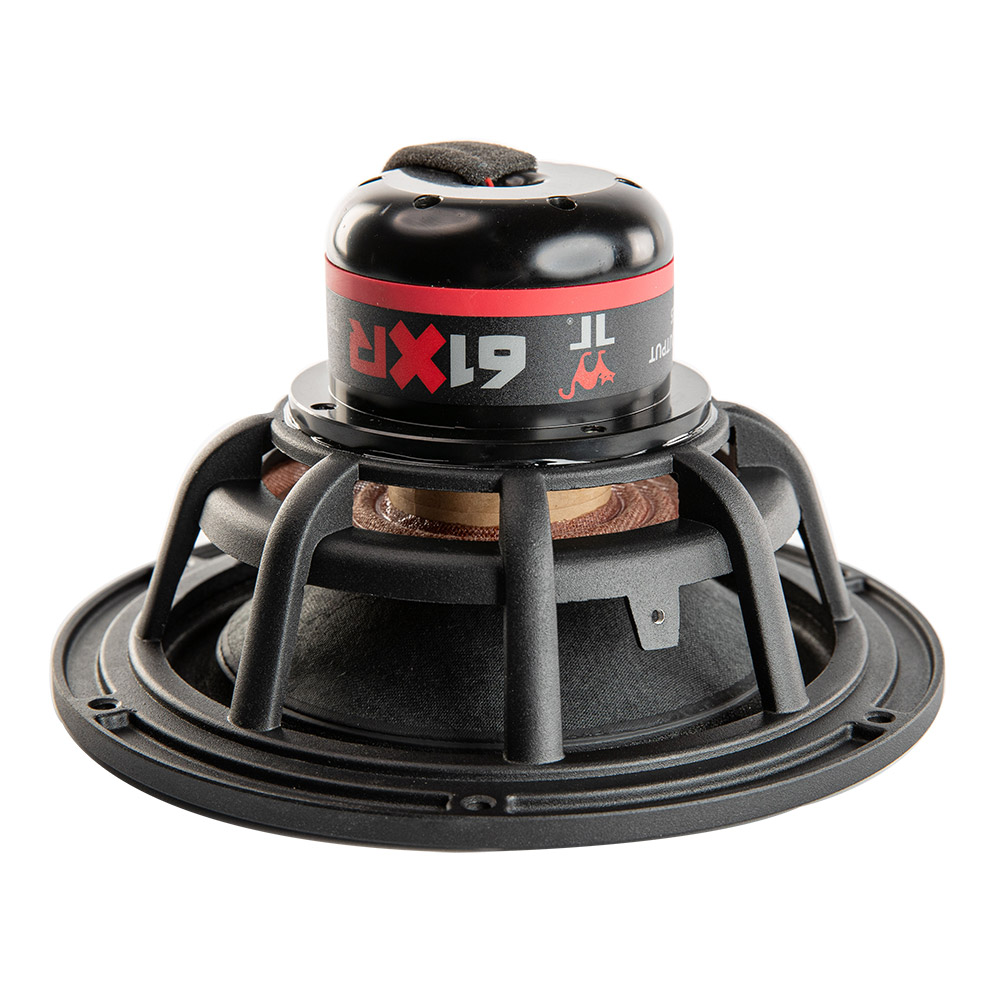

6" | 61XR
Neodymium Mid-Woofer
Key features:
  • EXTENDED FREQUENCY RESPONSE, incredible sound reproduction clarity

  • Secondary AND STATIC shorting COIL

  • High power handling

Design notes:
    • The 61XR was designed to be simply the best driver for 2-way and multi-way systems on the market. We bring this with clarity in the mid-frequencies and undistorted bass. The combination of our XR patented technology with static shorting coil brings an nonparallel opportunity to the audio designers. Motor DesignThe magnetic design incorporates large neodymium magnets placed along the voice coil winding, together with the 2nd
    • and static coil placed on the pole piece. This has allowed us to push the cone excursion to 30mm peak to peak, while lowering the inductance. The shorting coil covers the complete main coil excursion. This is also an improvement compared to some previous designs on the market. Our extensive R&D on the surround foam material has yielded material that has proven its
    • benefits over and over again. The surround is extremely light, yet it allows the cone excursion as the traditional, but heavier, rubber surround. 61XR best application is in hi-quality home hi-fi applications and studio monitors where the requirements for precise sound reproduction without distortion artifacts are required.
Specifications:
    • General specs
      Nominal Diameter:6 in.
      Rated Impedance:4 Ohm
      Power handling
      AES Power:100 Watts
      Program Power:200 Watts
      Voice Coil
      Diameter:1.75 in.
      Winding wire:Copper
      Former:kapton
      Winding height:10.3 mm
    • T/S Parameters
      Resonant frequency:64 Hz
      Re:3.1 ohm
      Qes:0.96
      Qms:2.88
      Qts:0.72
      Vas:8.6 liters
      Sd:132.7 cm2
      Mms:17.3 grams
      Bl:4.77
      Le:0.06 mH
      Sensitivity:87.02 dB
    • Design details
      Surround Material:Foam
      Cone material:Paper
      Spider:Nomex
      Plate thickness:26.5 mm
      Peak to peak linear cone Displacement19.6 mm
      Overall diameter:181.5 mm
      Bolt circle diameter:169.5 mm
      Baffle cutout dia.:151 mm
      Number of mounting holes:6
      Depth (flange to rear):94 mm
      Net weight:1.5 kg
    • Ordering codes:
      4 ohm version:61XRX4-404D
      Recone kits:
      Download:
      Spec download

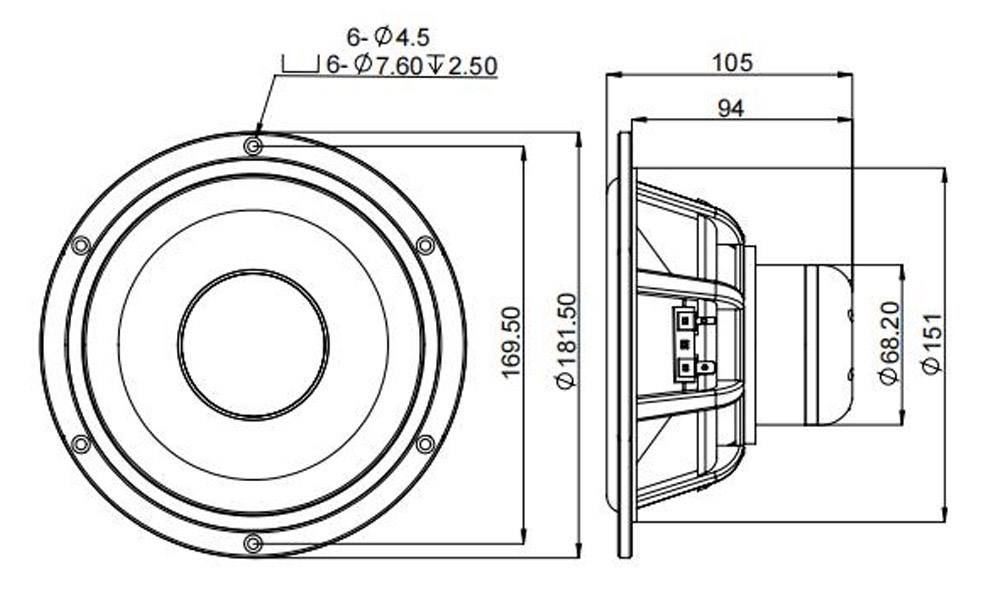

      2D drawing
      3D model

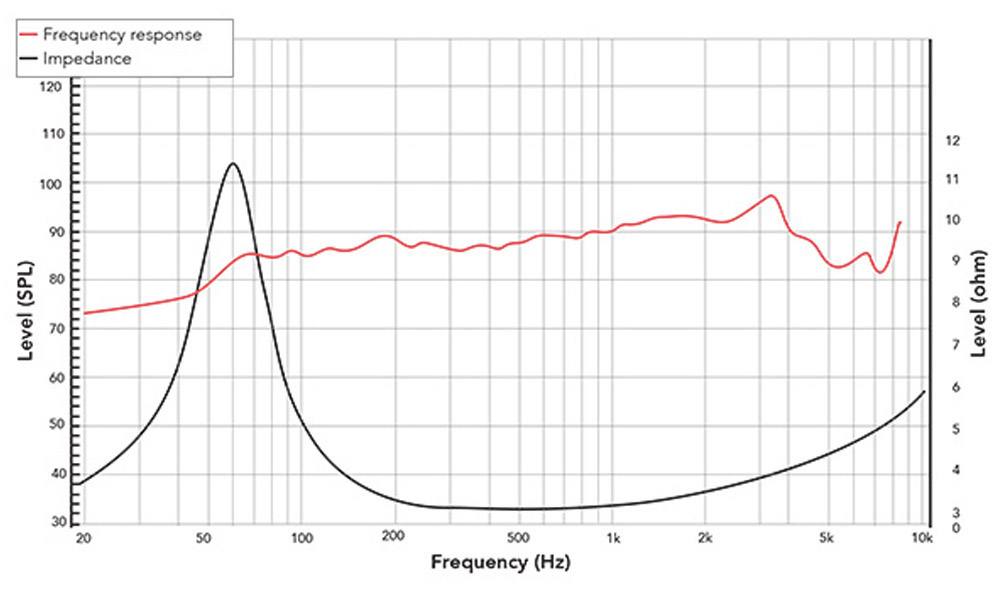

Frequency response & lmpedance
2D drawing
